Replace Below

This feature allows you to trim (or flatten) the bottom off a component or multiple components. This could be useful if you've imported an STL model that has some undesired thickness, for example, when it has come from a 3D scan. Also, sometimes you could end up with an undesired negative part of the components (when sculpting, or combining with a deep subtracted model). This tool will allow you to remove anything below a certain height, and (optionally) drop the model by that height.

The result of the operation will be a component that will appear in the Component Tree.

  • If only a single component is selected, it will be replaced.
  • If multiple components are selected (or a level with more than one component is chosen), they will be baked into a single component, then the operation will applied to the baked component.
Original model
Model after applying Replace Below tool

Note

Select one or more components, or use the active level to get started.

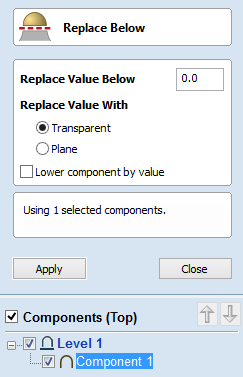

Options & Parameters

Replace Value Below

Replace areas that are below the given height with the height chosen by Replace Value With.

Replace Value With

This will control what value to replace those areas with.

  • Transparent: Completely remove those areas, and replace them with transparency.
  • Plane: Replaces those areas with a plane. The height of the plane is the height input above.

Lower Component by Value

When this option is checked, the model will be dropped by the given height. This is useful if the model is too thick and/or we want to get rid of some background (i.e. one that has come in with an STL model). If you set this to 0, it will remove everything below the Zero-Plane.

Selection

Height Value

The height value is local to the selected component(s). This is equivalent to the value you see if you hide everything but keep the components of interest visible. Therefore, it is easier to apply this to levels.

3D View Selection

You can double-click a point in the 3D view while the form is up to update the height value used.

Level & Component Selection

The effects of this operation are applied to the components and does not necessarily rely on the visible model. To apply this operation:

  • Either have one (or more) component(s) selected, or
  • Activate a level to select all visible components beneath it.
