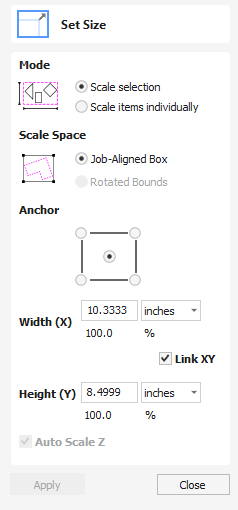

Set Size

Selected items in the 2D View can be accurately scaled or resized using this option.

Watch this video to see this in action:

Mode

There are two choice of scaling mode:

  • Scale selection
  • Scale items individually

If scale selection is chosen then the whole selection is scaled as if it were a single group. If scale items individually is chosen then the scaling is applied to each of them as they were all selected one by one.

Anchor

The anchor position determines the point on your selected object's bounding box that will be resized to the dimensions entered.

Link XY

Checking ✓ this option will always scale the height and width in proportion. Leaving the Link option unchecked allows non-proportional scaling

Auto Scale Z

This option sets a specific mode of scaling for 3D Components. When it's checked, ✓ scaling a model component in X or Y will result in it also scaling proportionately in Z, as such if you increase its size in X and/or Y then its Z Height will also increase and conversely when you reduce its X and/or Y size it will shrink in height. When it is unchecked then the Z Height of your Components will remain constant regardless of any X and/or Y scaling done either within this form or dynamically using the mouse in the 2D or 3D View.

Interactive Sizing

The default mode is to enable selected items to be scaled interactively by clicking twice with the mouse.
The process is:

  • Select the vectors
  • Click a second time to activate the interactive options - handles on the selection box
  • Click and drag on the white handles

The keyboard shortcut T opens the Scale form in interactive mode

Usable In Both Views

This tool can be used in both the 2D and 3D View.

2D View offers a more direct way to view your vectors while the 3D view offers more flexibility to work with Vectors in 3D Designs and to make use of the Edit Boxes.

When in the 2D view, a number of the forms tools will be driven by options in the form only.

  • Middle - Move the vectors (Hold Alt and move the selected objects in one axis)
  • Middle - Click a second time to switch to Rotational center. Click and drag the Rotational Anchor to reposition the Rotational Center of the current selection.
  • Corner (White) - Scale the vectors proportionally (Hold Alt for scaling non-proportionally, Shift to scale around the centre)
  • Edges (White) - Scale the vector in one axis (Hold Shift for scaling proportionally)
  • Corner (Black) - Rotate the vectors (Hold Alt to Rotate in 15° increments) about the Rotation Center.

In the 3D view, there is an expanded number of handles to directly edit the vector within the view, without needing to use the creation form on the left.

In the 3D View, the Handles are:

  • Middle - Move the vectors (Hold Alt to Move the selected objects in one axis)
  • Middle - Click a second time to switch to Rotational center. Click and drag the Rotational Anchor to reposition the Rotational Center of the current selection.
  • Corner (White) - Scale the vectors proportionally (HoldAlt for scaling non-proportionally, orShift to scale around the centre)
  • Edges (Black) - Scale the vector in one axis (Hold Shift for scaling proportionally)
  • Rotation Arrow (Top Black) - Rotate the vectors (Hold Alt to rotate in 15° increments)
  • White circles are properties unique to this tool to allow direct mouse editing of values in the tool form from within the view.

When you select a Transform Handle, it will activate the appropriate Edit Box for that Handle.

If you need an exact value for a field while dragging it, release the mouse button and type in the desired value, followed by Enter to accept the new value.
